There is an easy way to synchronize your ARRI Alexa Mini camera with Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display & TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO
- Set the camera menu:
- TC > Options > Source > Ext. LTC
- Mode > Free Run
- Generator > Regen

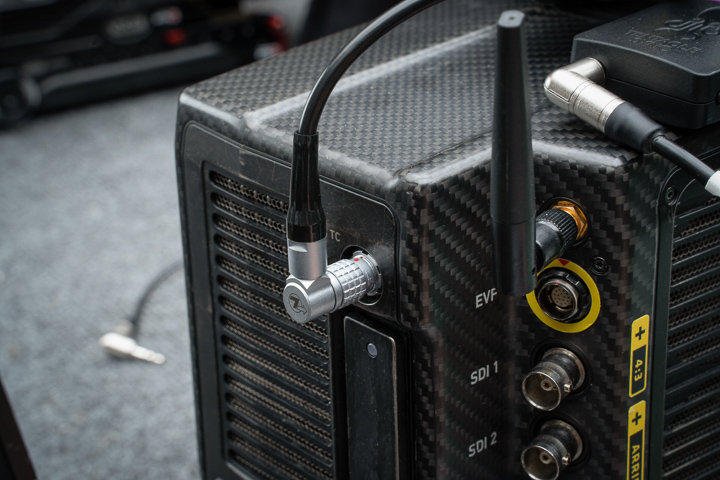

- Connect the Tentacle to the TC input on the back to the camera body
Recommended cables
C15 Tentacle to Alexa Mini-Timecode Cable
For the synchronization of the ARRI Alexa Mini LF read this article
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
