This Canon C400 camera can easily be synchronized with one of our timecode generators SYNC E and ORIGINAL, TRACK E audio recorders or TIMEBAR timecode displays. It has a dedicated timecode input on the side records file timecode as metadata. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO

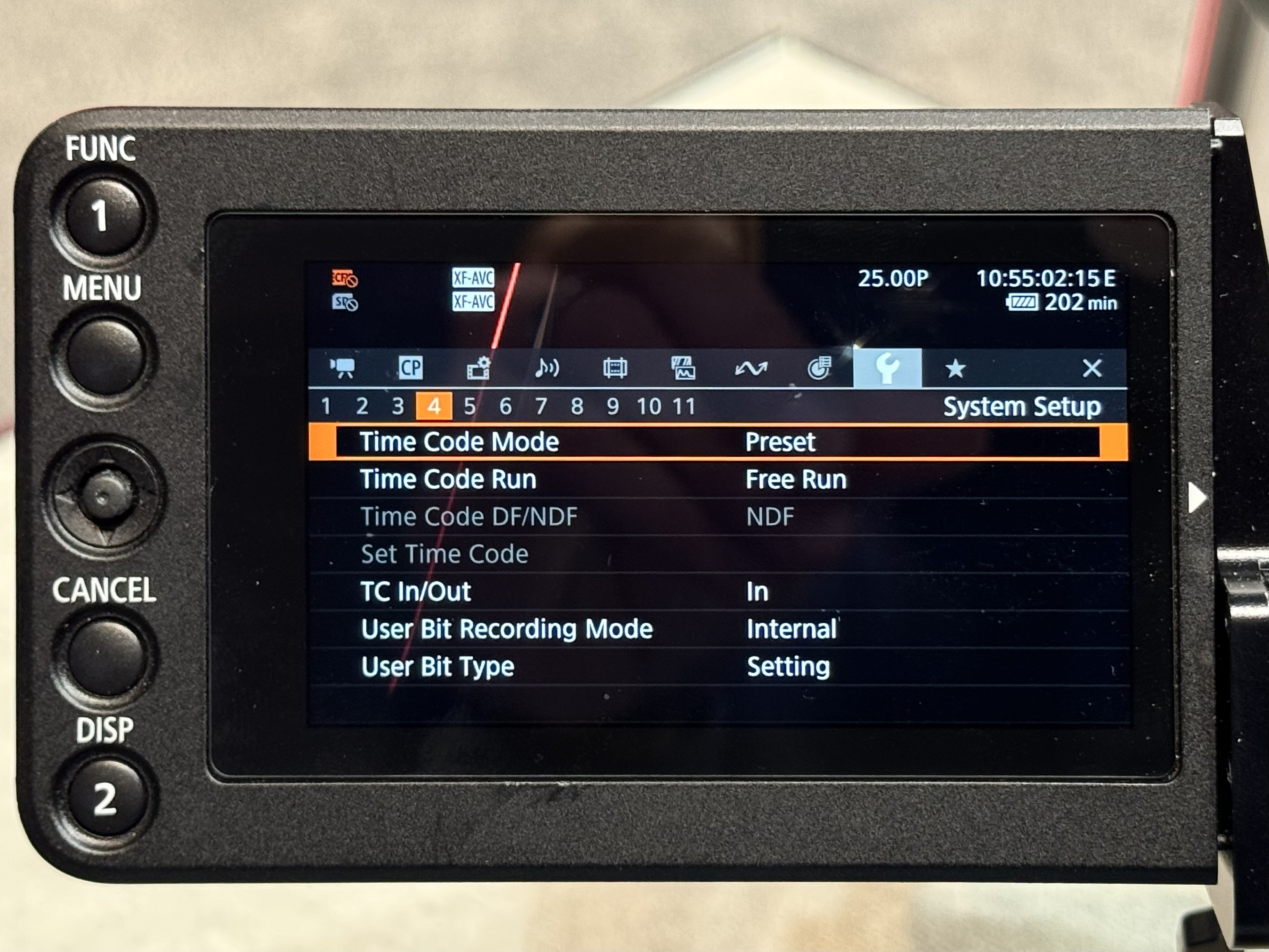

- Set the camera menu:
- TC In/Out > 00:00 TC/UB Setup > Time Code > TC In/Out > In
- System Setup > Time Code Mode > Preset
- System Setup > Time Code Run > Free Run

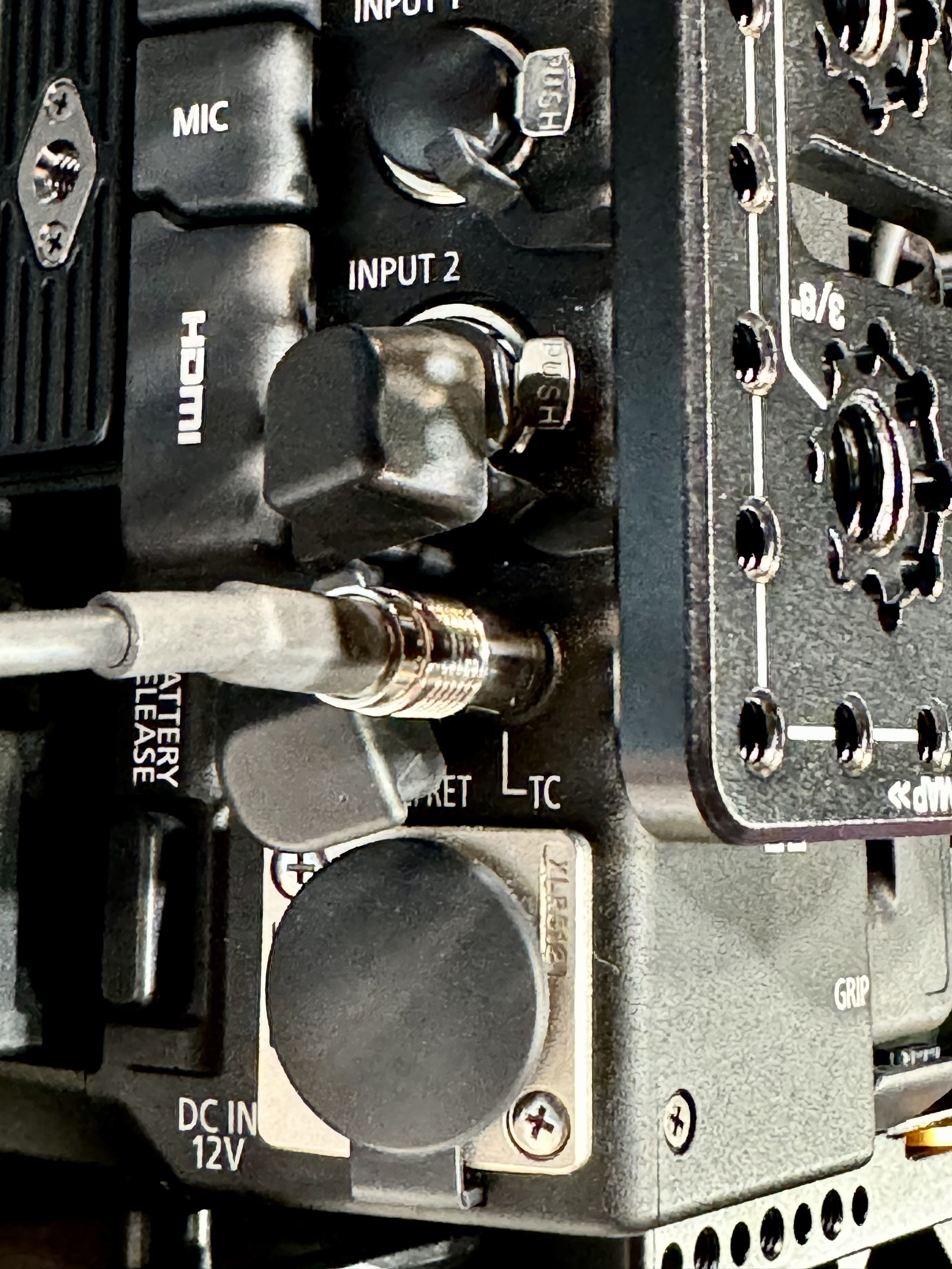

- Connect your Tentacle to the TC input of the camera
Recommended cable
C22 Tentacle to DIN 1.0/2.3-Timecode Cable
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
