There is a way to sync your Tascam FR-AV2 with Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display & TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set your audio recorder and Tentacle device to the same frame rate
- Synchronize your Tentacle device and set the Output Volume in the app to LINE or AUTO

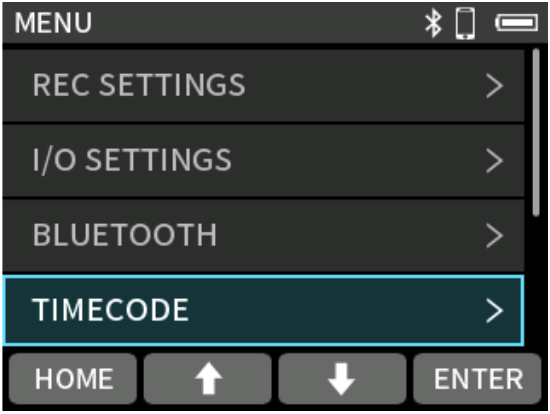

- Set audio recorder menu:

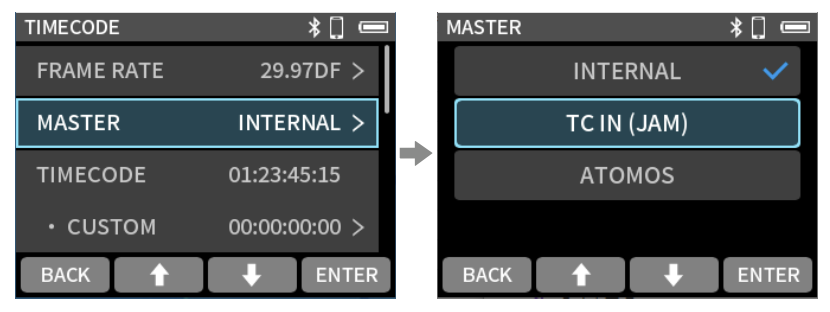

- MENU > TIMECODE > MASTER > TC IN (JAM)

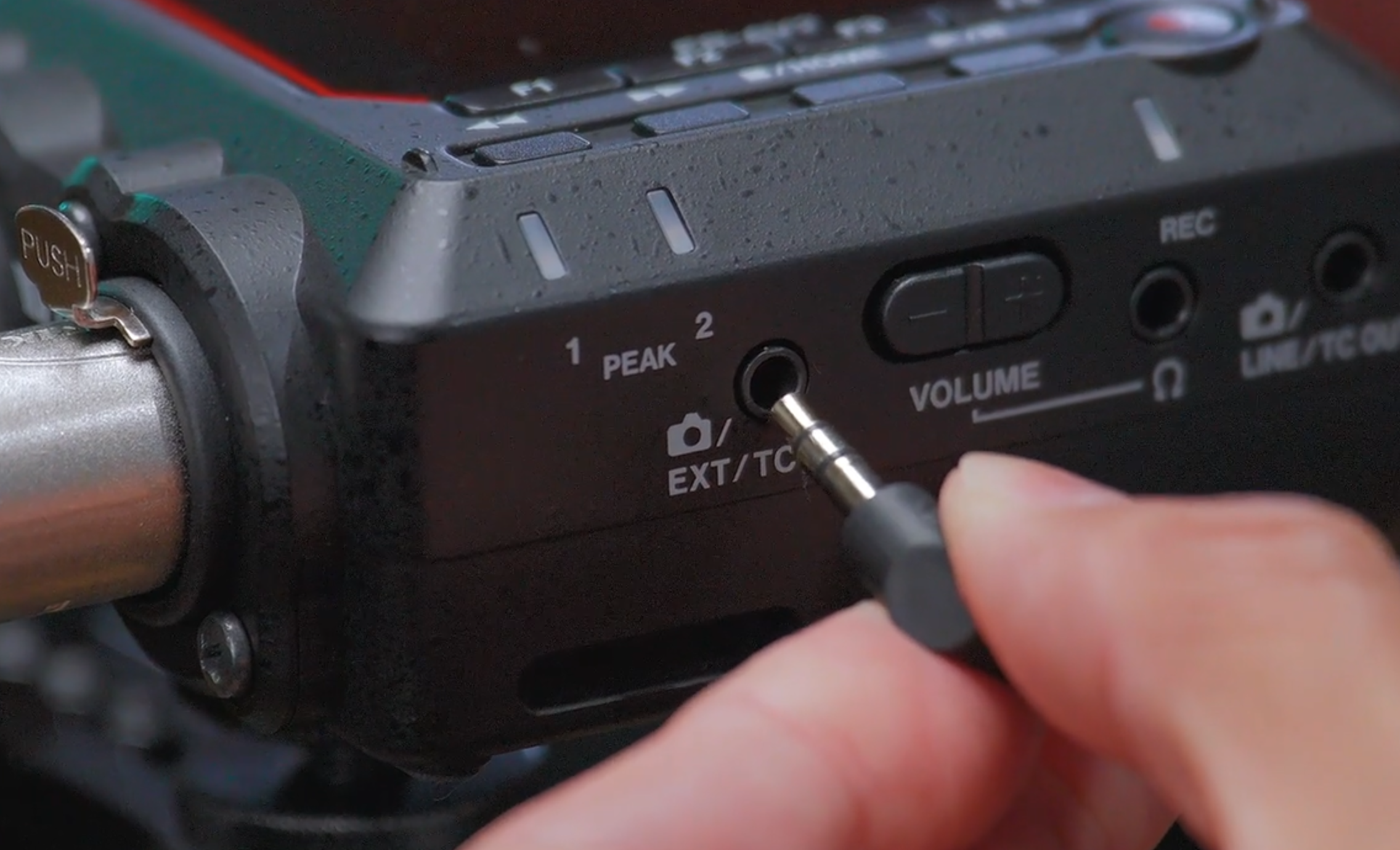

- Connect your Tentacle to the EXT./TC IN of the Tascam
Recommended cable
C07 Tentacle to DSLR-Timecode Cable (included in any SYNC E set)
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
