You can synchronize your DJI Osmo Pocket camera with Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display & TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO
- Set the camera menu:

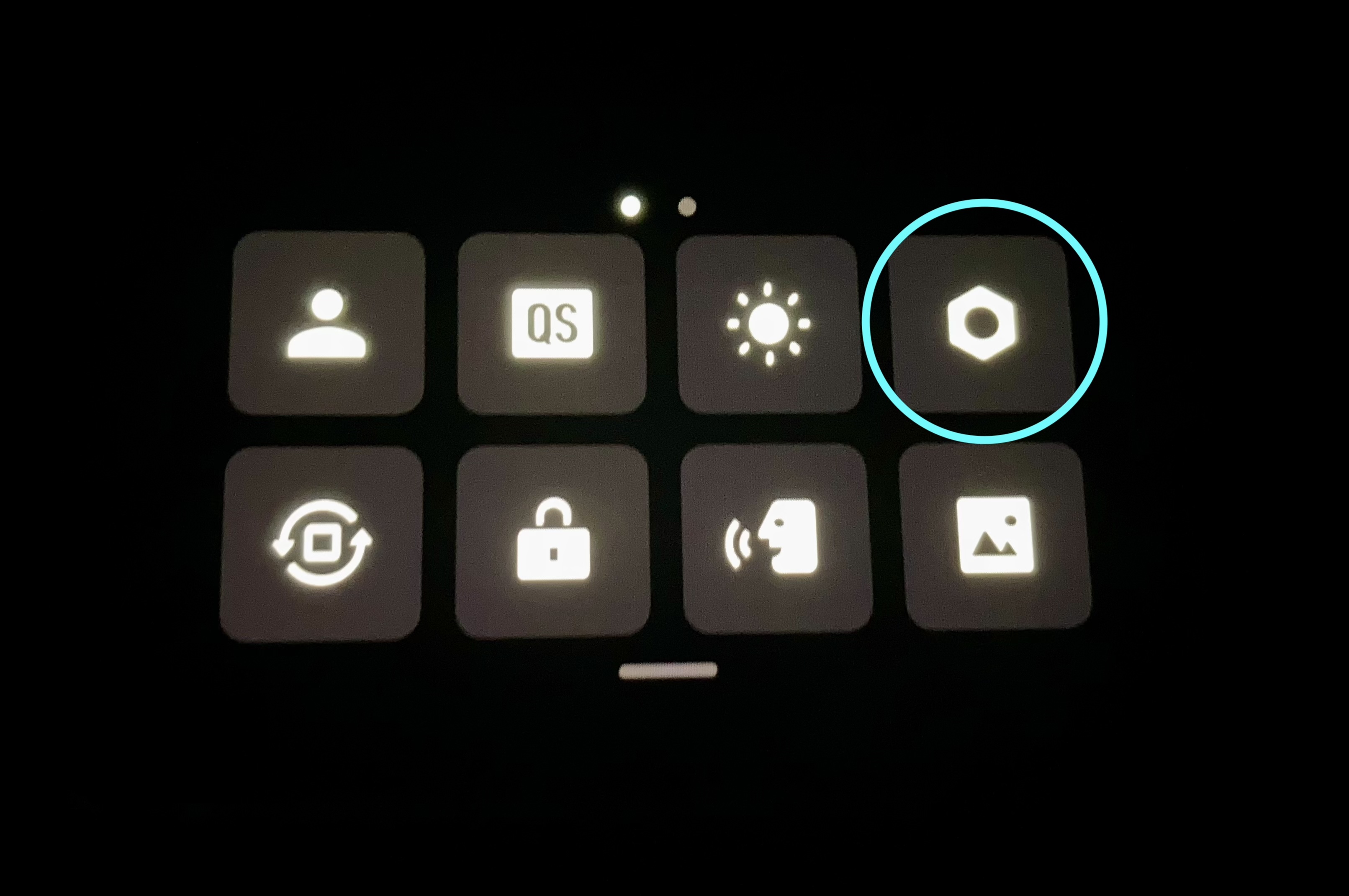

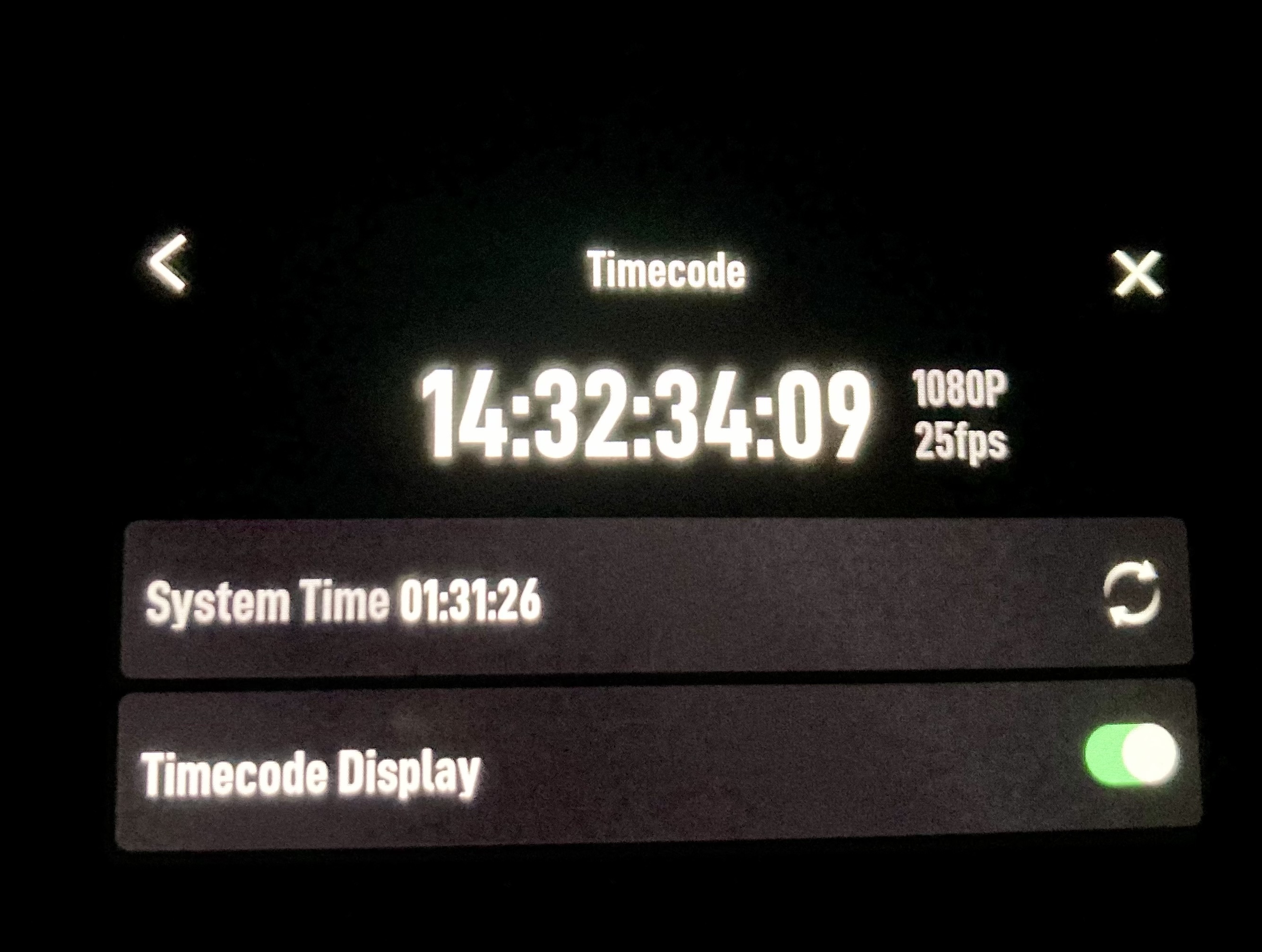

- Settings > (scroll down) select > Timecode
- Connect the Tentacle to the USB-C input on the camera body
Recommended cables
C26 Tentacle to DJI-USB-C-Timecode Cable (coming soon)
Important: The NTSC frame rate used by Osmo Action 5 Pro/Osmo Pocket 3/Osmo Action 4/Osmo Action 3 is (23.98fps / 29.97fps / 59.94fps) instead of (24fps / 30fps / 60fps), which means that 0.03 frames are unaccounted for every second.
Note:
If possible keep the Tentacle device connected to the camera at all times. If you jam-sync the camera, please do so as often as possible.
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
