The Nikon ZR with its latest firmware V1.10 can be synchronized with LTC file timecode by any Tentacle SYNC E or ORIGINAL timecode generator or TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Download the latest firmware (V1.10) for your Nikon ZR
- Set your camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume to Auto
| Nikon ZR frame rate | Tentacle device frame rate |
| 29.97p, 59.94p, 119.88p, 239.76p | 29.97 fps |
| 25p, 50p, 100p, 200p | 25 fps |
| 23.976p | 23.98 fps |

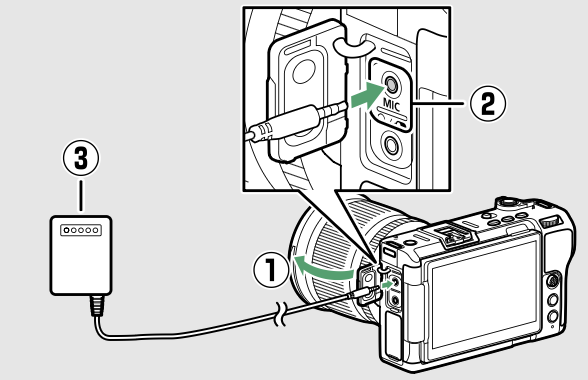

- Connect the Tentacle device to the 3.5 mm Mic input of the camera
- Go to the Menu of the camera:
- Timecode > Record Timecodes > On or On (with HDMI output)
- Timecode > LTC Signal Input > On
- Timecode is sent to the left channel
- Running Timecode will appear in the display
- When H.264 8-bit (MP4) is selected no timecode is recorded in the files
- When LTC signal input is set to ON, the options Count-up method, Timecode origin and Drop frame are not available
- If you Jam-Sync the camera, the timecode will be lost after you turn off the camera and you have to re-sync
RECOMMENDED CABLE
C07 Tentacle to DSLR-Timecode Cable (included in any SYNC E set)
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
