The Canon C300 or C500 are easily synchronized with one our timecode generators Tentacle SYNC E or ORIGINAL, TRACK E audio recorder or TIMEBAR timecode display. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO
- Set the camera menu:
- TC In/Out > 00:00 TC/UB Setup > Time Code > TC In/Out > In
- System Setup > Time Code Mode > Preset
- System Setup > Time Code Run > Free Run

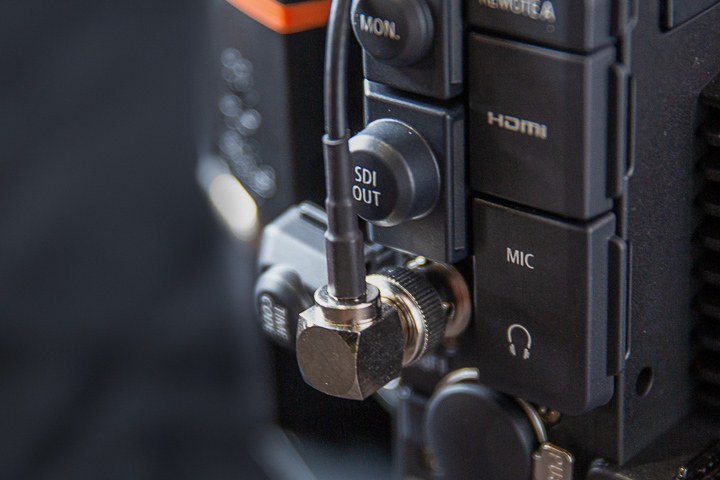

- Connect the Tentacle to the TIME CODE port of the camera

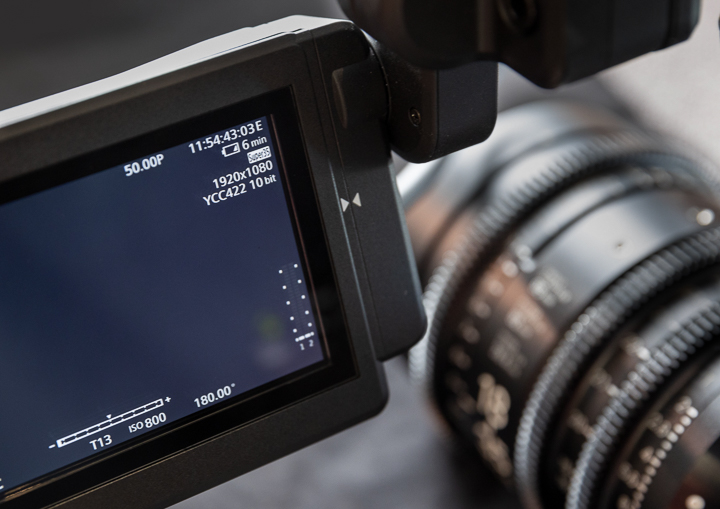

- Is the camera synced to the external TC of your Tentacle device, the timecode will be shown on the upper right corner of the camera display like this 10:00:00:00E for External
Recommended cables
C08 Tentacle to 90° BNC-Timecode Cable
C06 Tentacle to BNC-Timecode Cable
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
