The Blackmagic URSA Mini Pro camera is compatible with any Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display & TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows
- Set your Tentacle device and camera to the same frame rate
- Sync your Tentacle and set the Output Volume in the App to AUTO or LINE

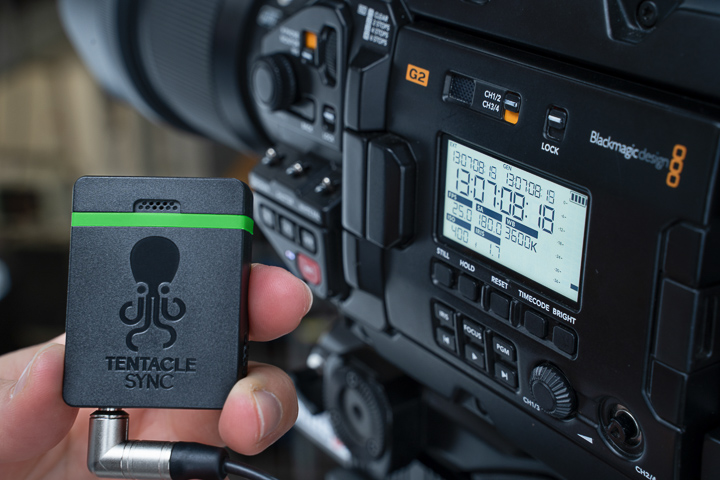

- Connect your Tentacle to the Ref In/TC In of the camera
- The camera will automatically detect timecode
- Once synchronized successfully, the EXT icon appears next to the TC displayed
Recommended cables
C08 Tentacle to BNC 90°-Timecode Cable
C06 Tentacle to BNC-Timecode Cable
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
