Your BMPCC 4K / 6K / 6K Pro camera can easily synchronized with any Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display or a TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
- Set your camera and Tentacle device to the same frame rate
- Set the camera's sensor frame rate to the same frame rate ((or double)
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO

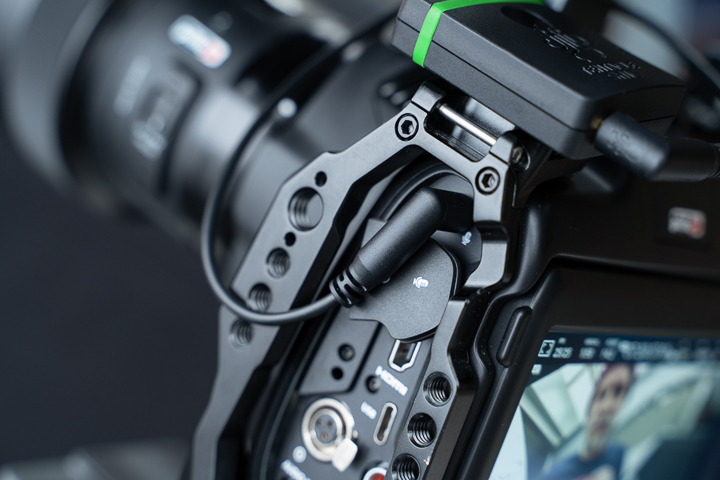

- Connect the Tentacle to the MIC input of your Blackmagic camera

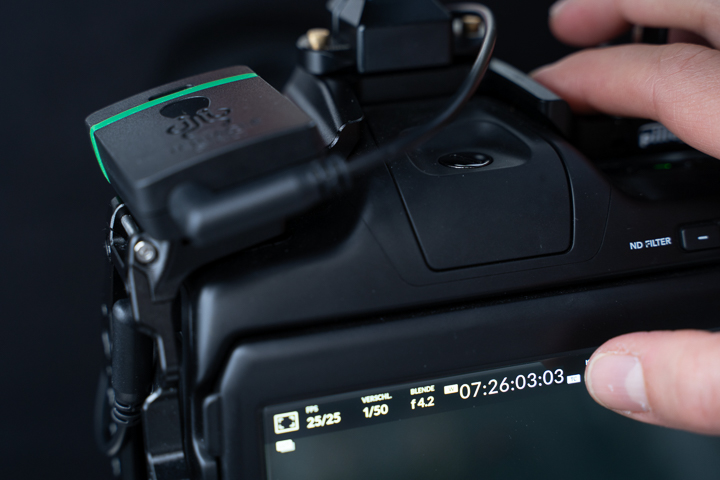

- The camera will detect the TC automatically and display the timecode
Recommended cable
C07 Tentacle to DSLR-Timecode Cable (this cable is included in any SYNC E set)
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
