IYou can synchronize your Kinefinity camera such as Mavo Edge 6K / 8K with Tentacle SYNC E or ORIGINAL timecode generator, TIMEBAR timecode display & TRACK E audio recorder. For more information about Tentacle syncing workflow with the Setup App, click here.
Proceed as follows:
- Set camera and Tentacle device to the same frame rate
- Sync your Tentacle and set the Output Volume in the app to LINE or AUTO
- Set the camera menu:
- Menu > Settings > Timecode > External TC

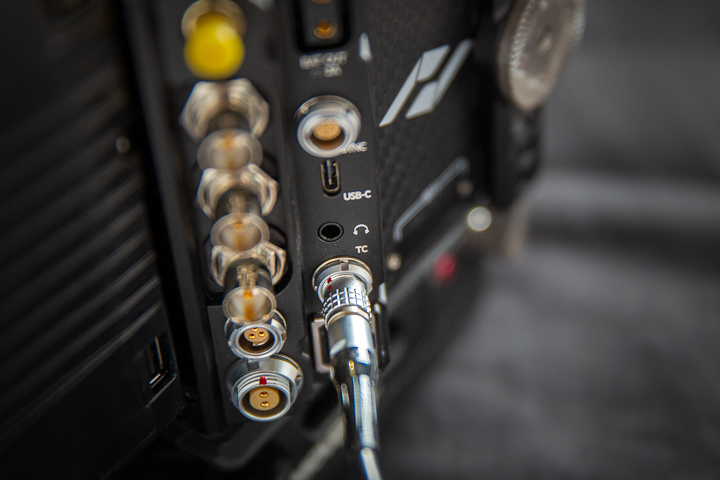

- Connect your Tentacle device to the TC input of the camera with this
- The timecode will be shown on the lower right of the display TC EXT 10:00:00:00
Recommended cable
C02 Tentacle to LEMO 5-pin-Timecode Cable
Note:
We cannot guarantee the completeness or accuracy of information provided by third-party manufacturers, so we recommend that you contact these third-party manufacturers directly if you have any questions regarding their devices.
