If you want to build your own cables or need to repair one, please refer to the pinout and wiring diagrams below. We recommend that you use original Neutrik NTP3RC and LEMO connectors for reliable connections.

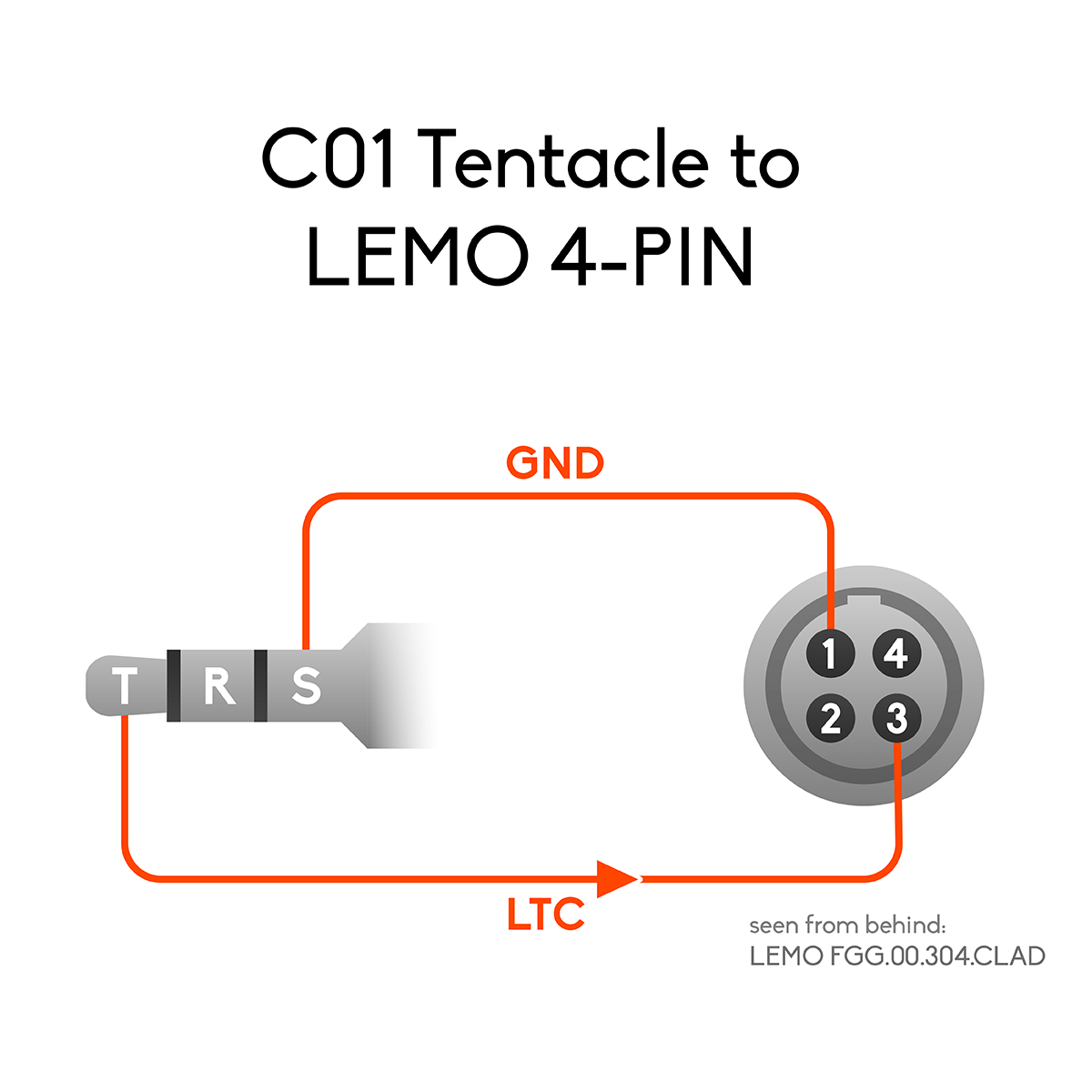

C01 - TENTACLE to LEMO 4-Pin timecode cable

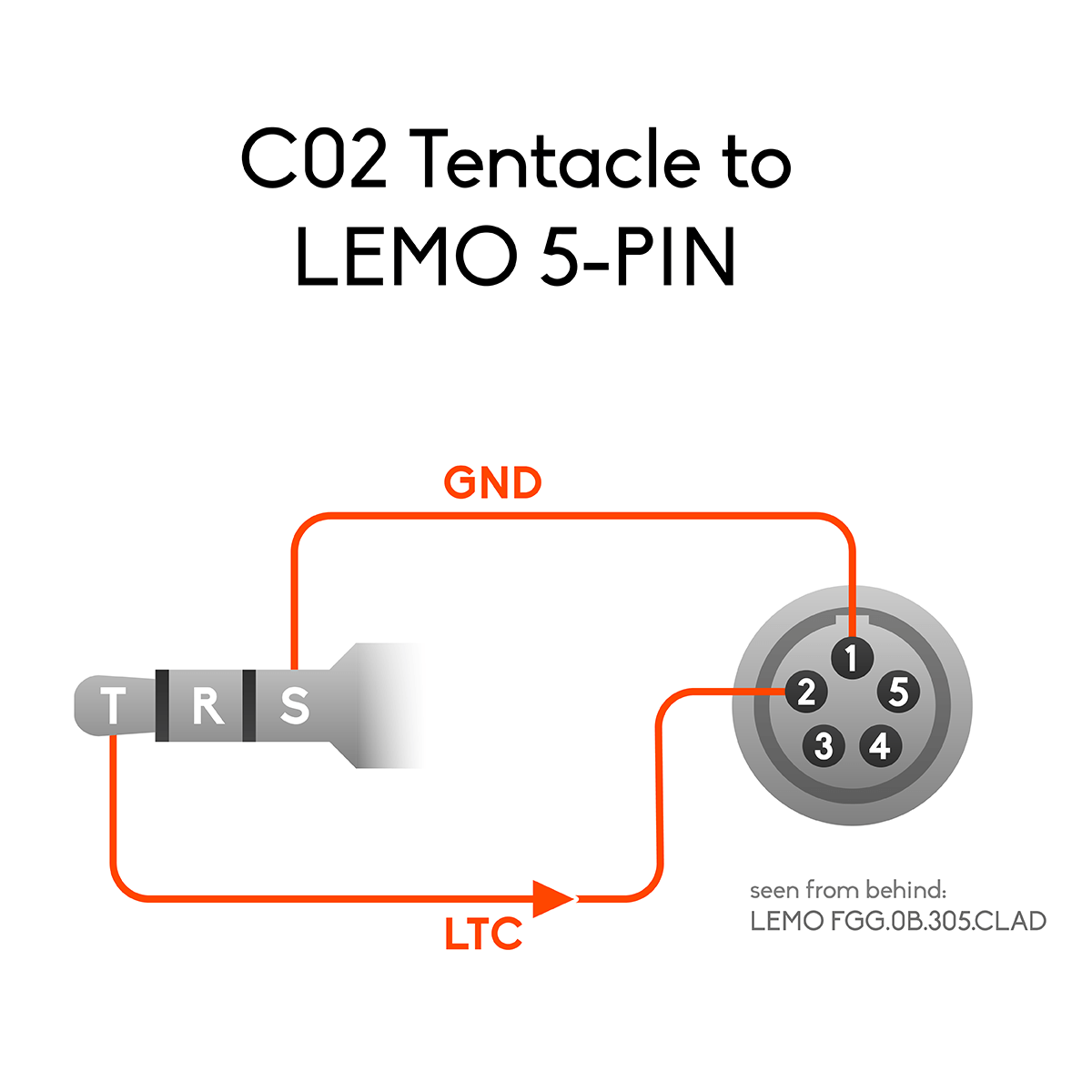

C02 - TENTACLE to LEMO 5-Pin timecode cable

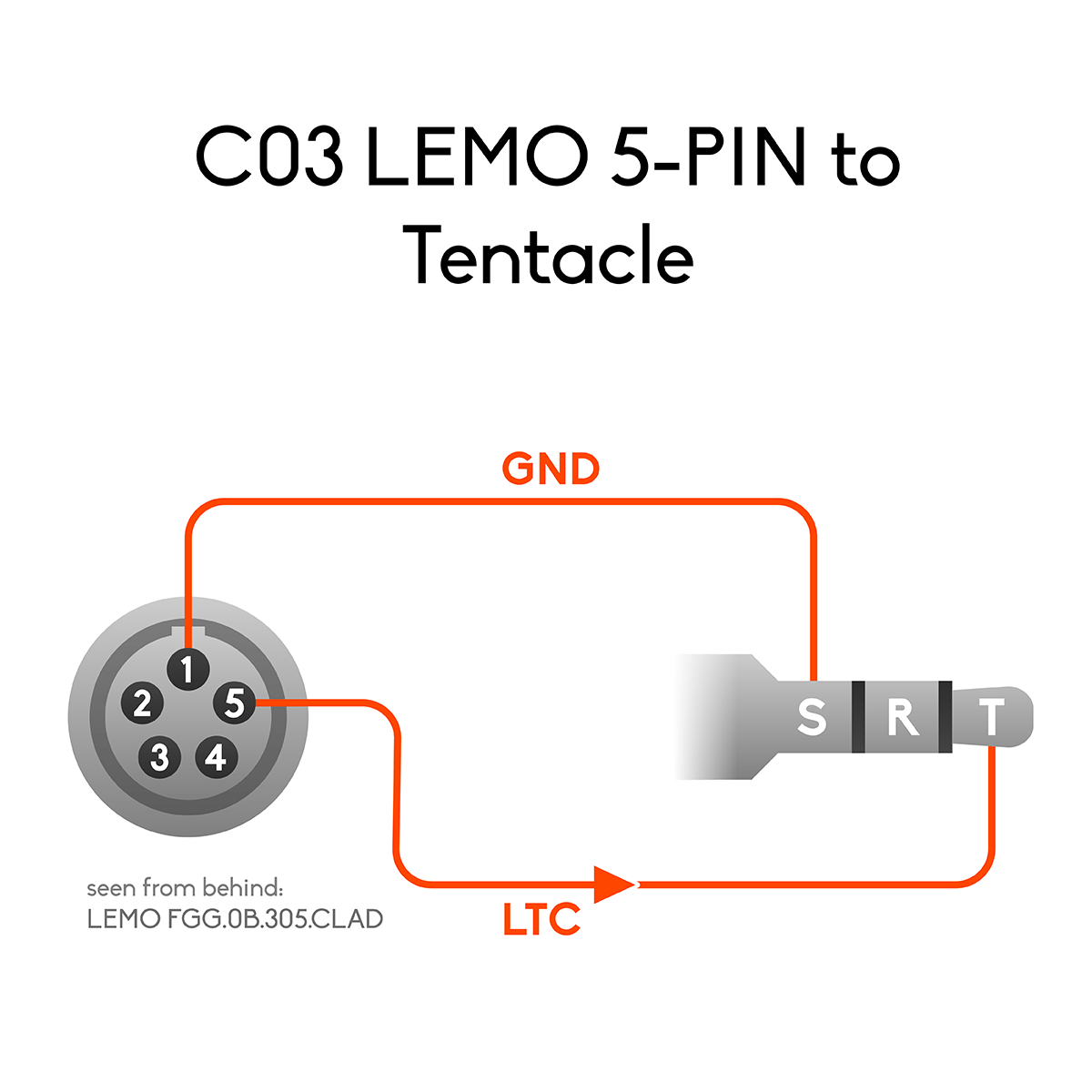

C03 - LEMO 5-Pin to TENTACLE timecode cable

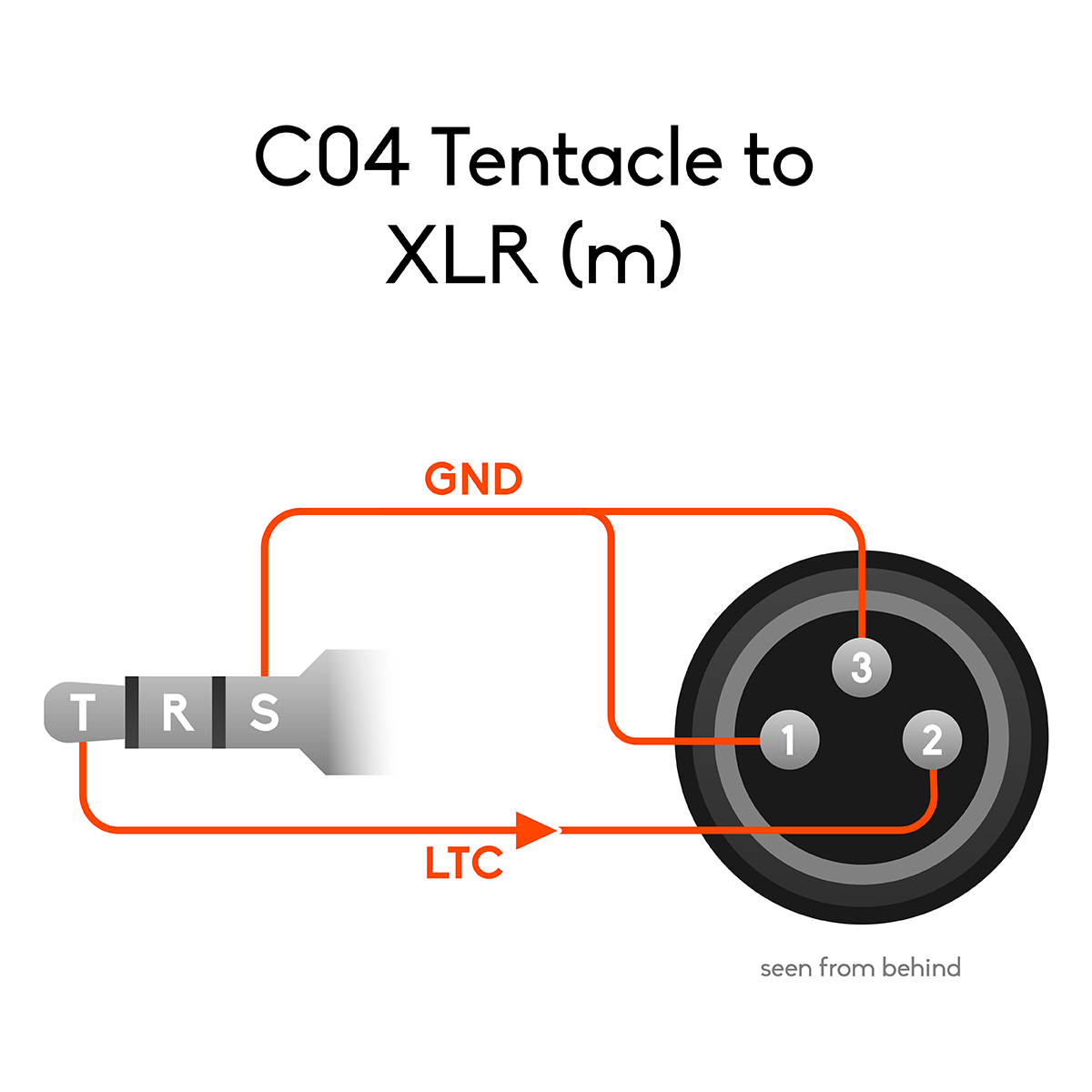

C04 - TENTACLE to XLR male timecode cable

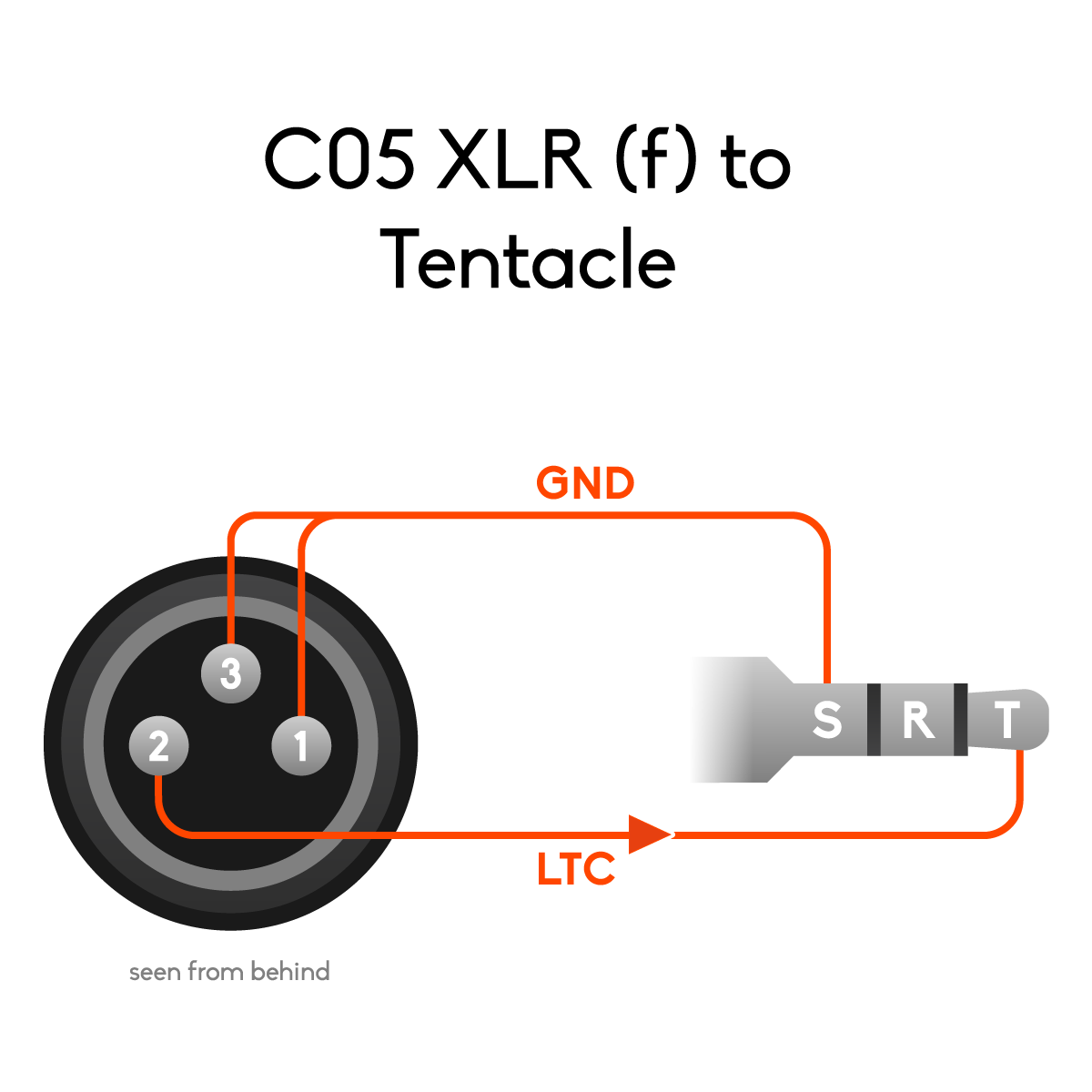

C05 - XLR female to TENTACLE timecode cable

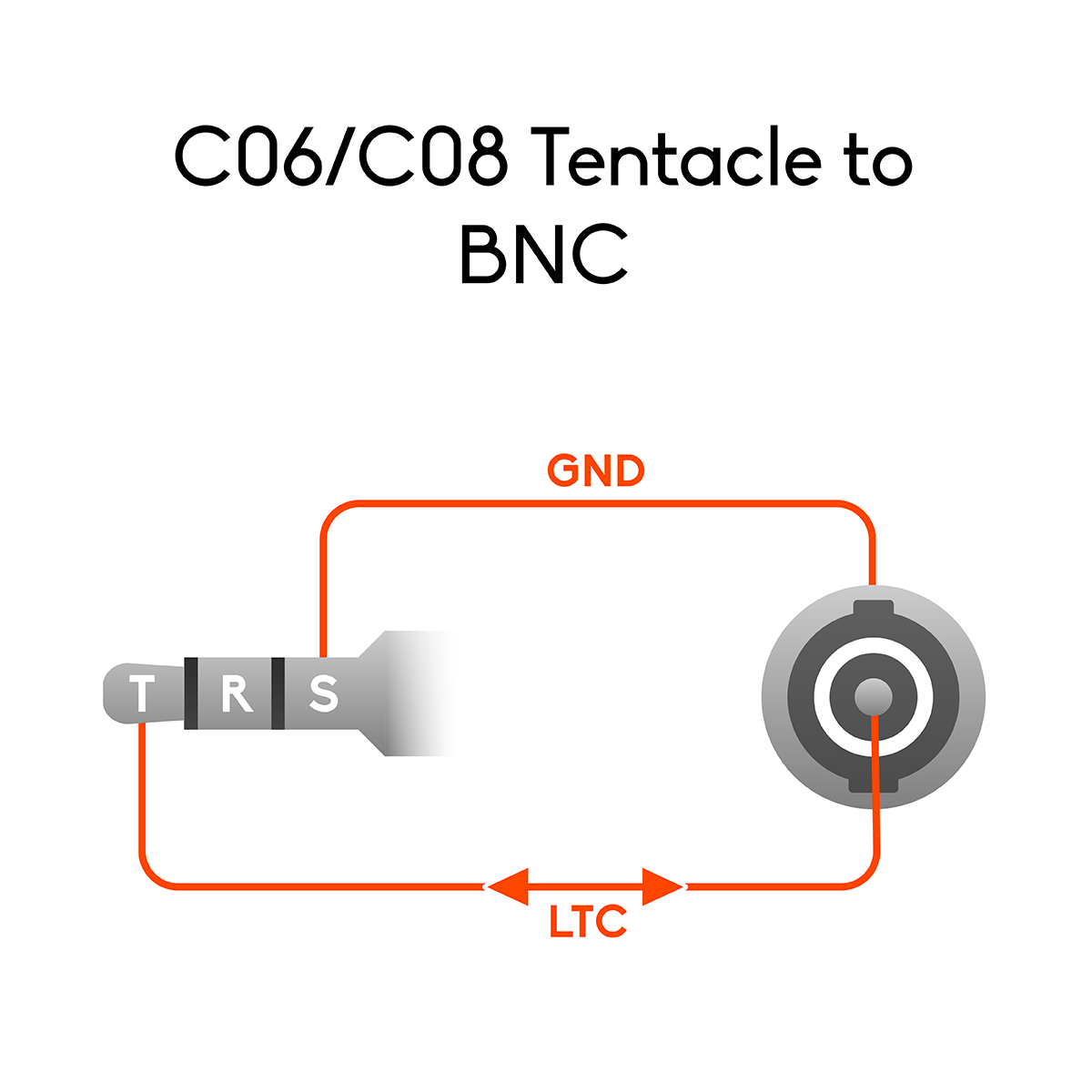

C06/C08 - TENTACLE to BNC timecode cable

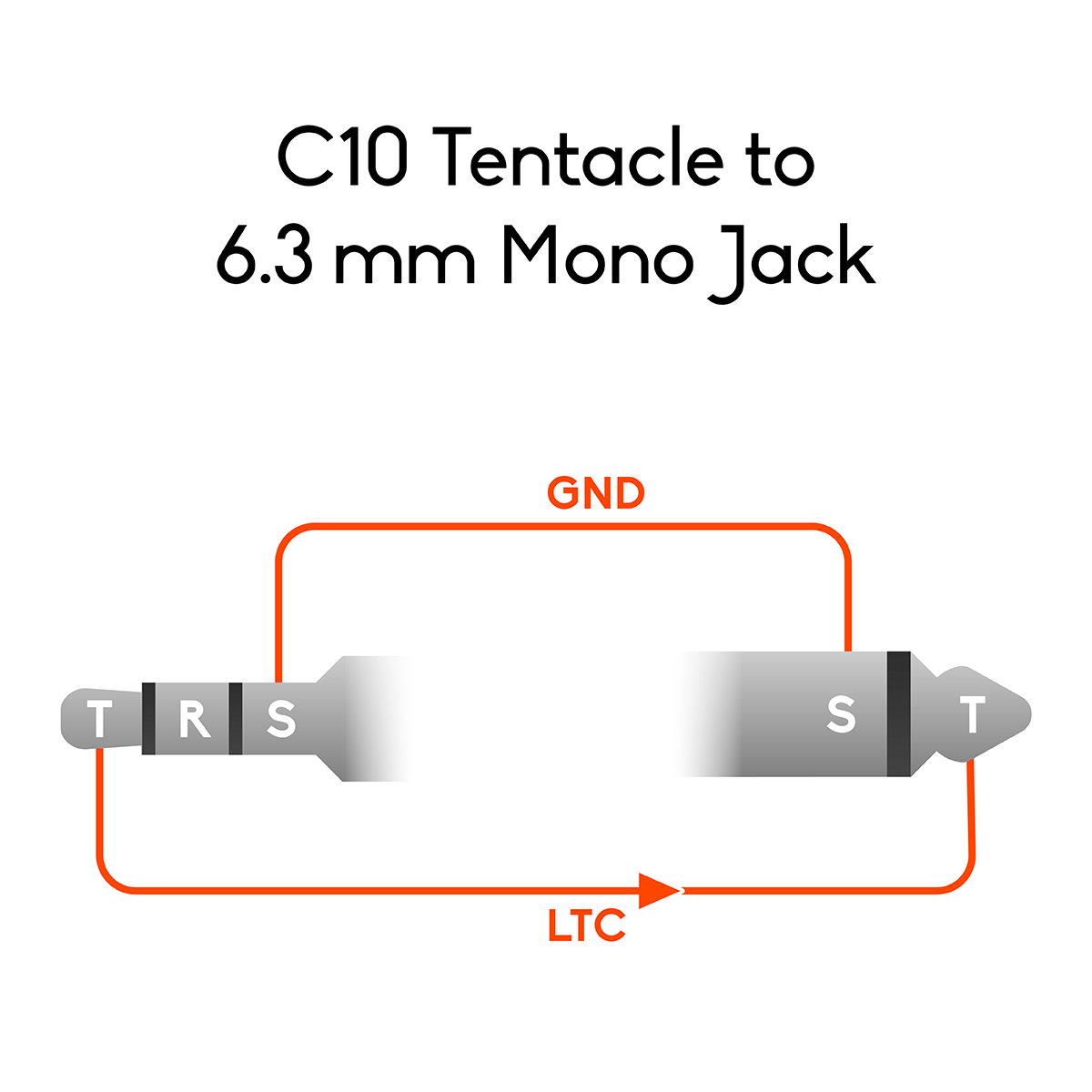

C10 - TENTACLE to 6.3mm Mono Jack timecode cable

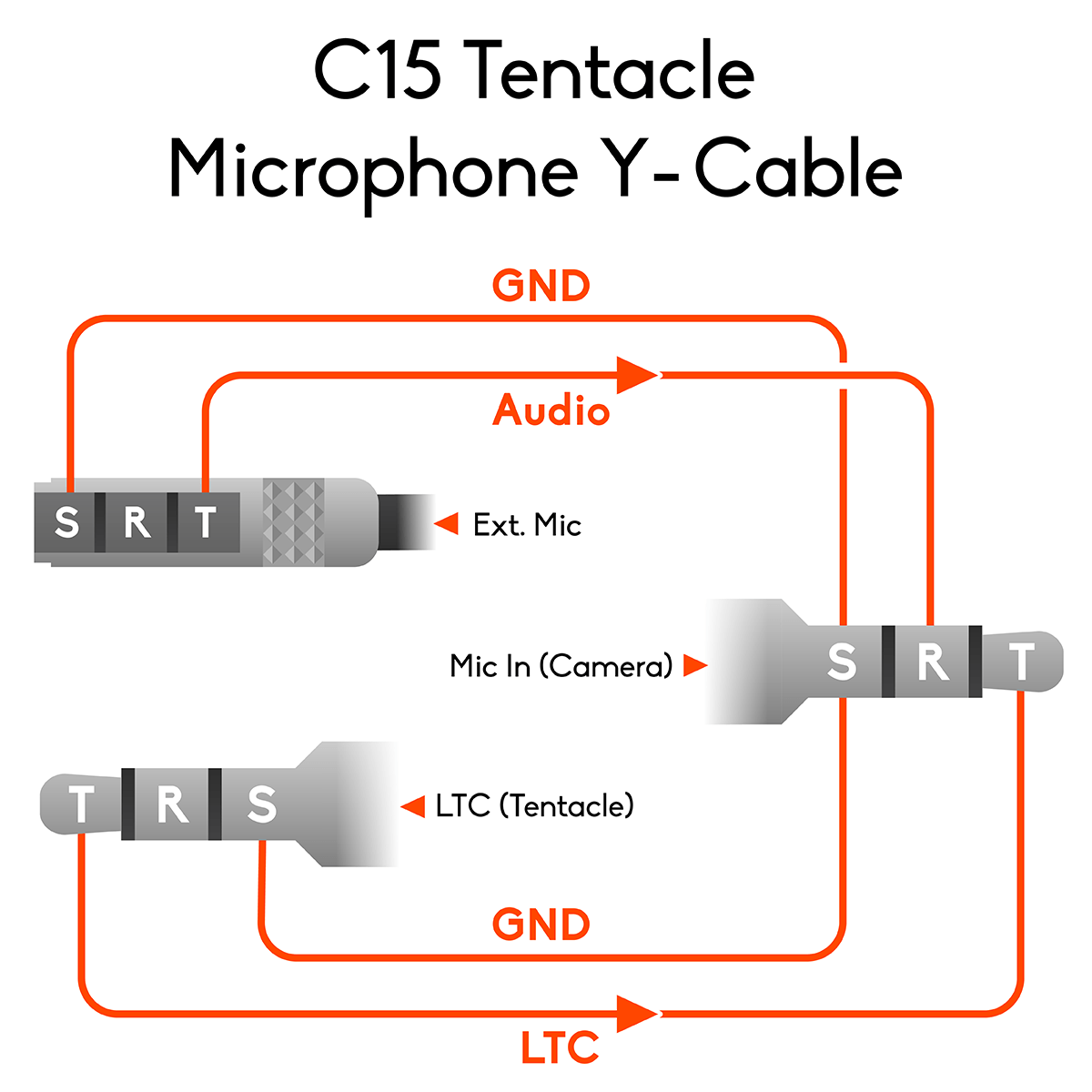

C15 - TENTACLE to Microphone Y-Cable

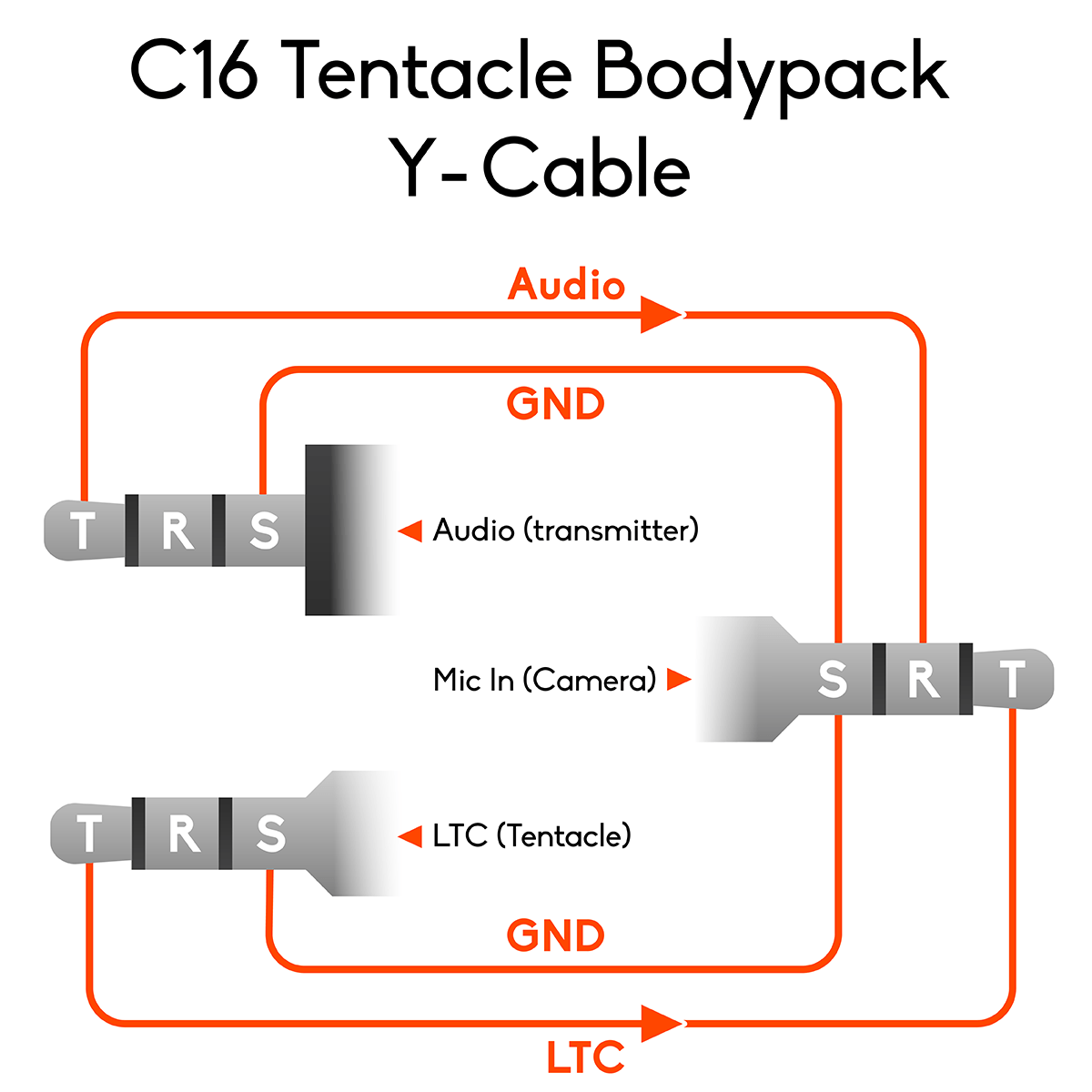

C16 - TENTACLE to Bodypack Y-Cable

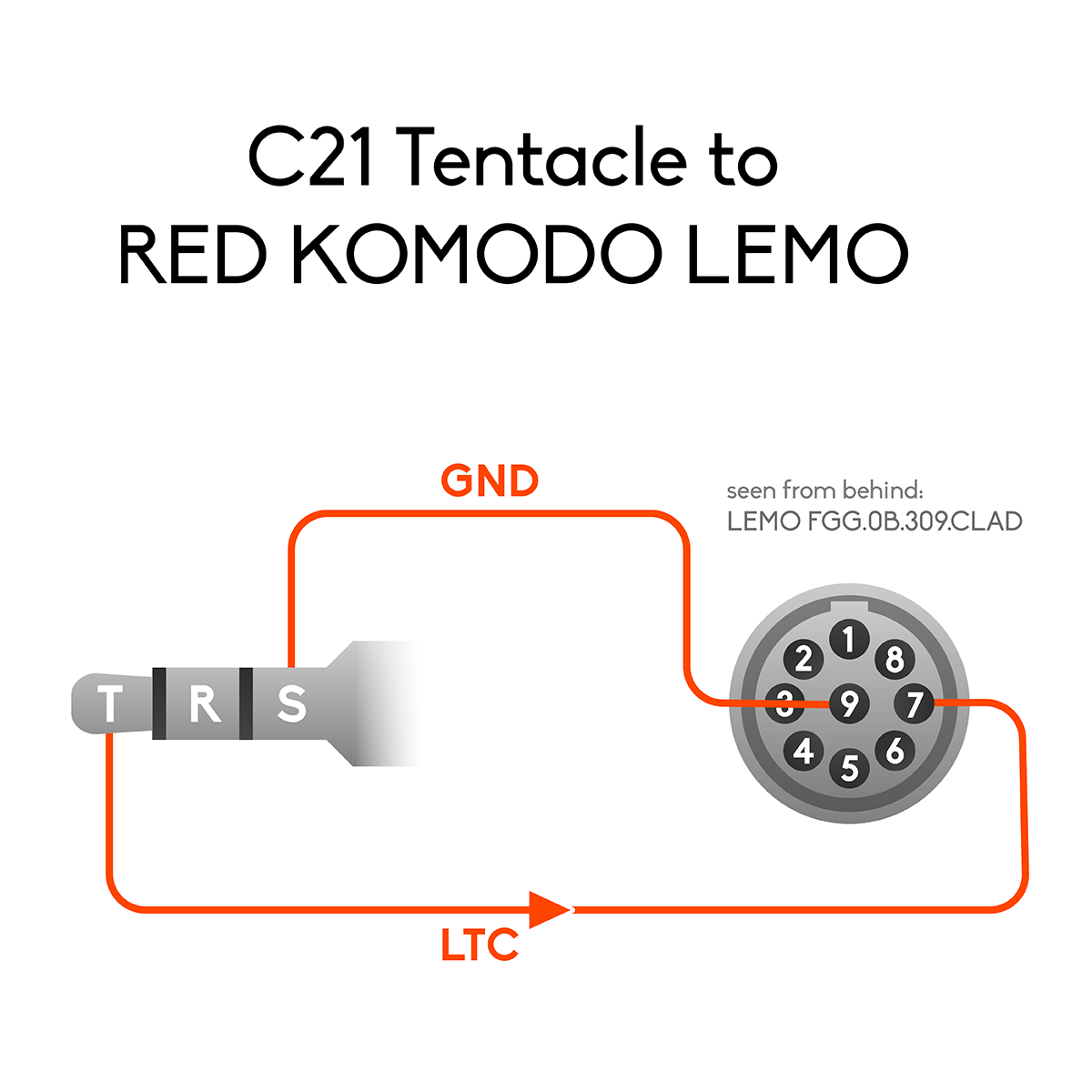

C21 - TENTACLE to RED KOMODO LEMO 9-Pin timecode cable
